Reactor sampling with bottom valve

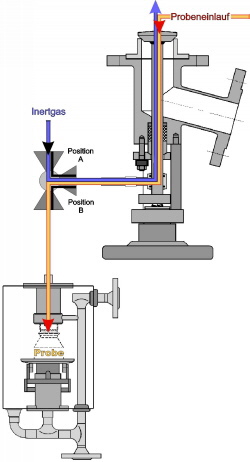

Enameled reactors with one bottom outlet nozzle be closed by bottom outlet valves. The enameled bottom valve EC BV takes a sampling from the well-mixed area under the agitator. The valve stem is build of hastelloy and has a central drain. A special coupling with a PTFE lined hose connects the valve stem with a 3/2 way valve. The 3/2 valve allows to purge through the valve stem first into the reactor and finally to take the sample out. The sample bottle is housed in a protective cabinet.
|
